Deployment

To back up Windows data to your on-premise data center,  you need to install the BDRSuite Backup Server. Check supported OS for the BDRSuite Backup Server installation here.

Download

Download the BDRSuite Backup Server.

Installation

Guide to perform installation - Click here

Login

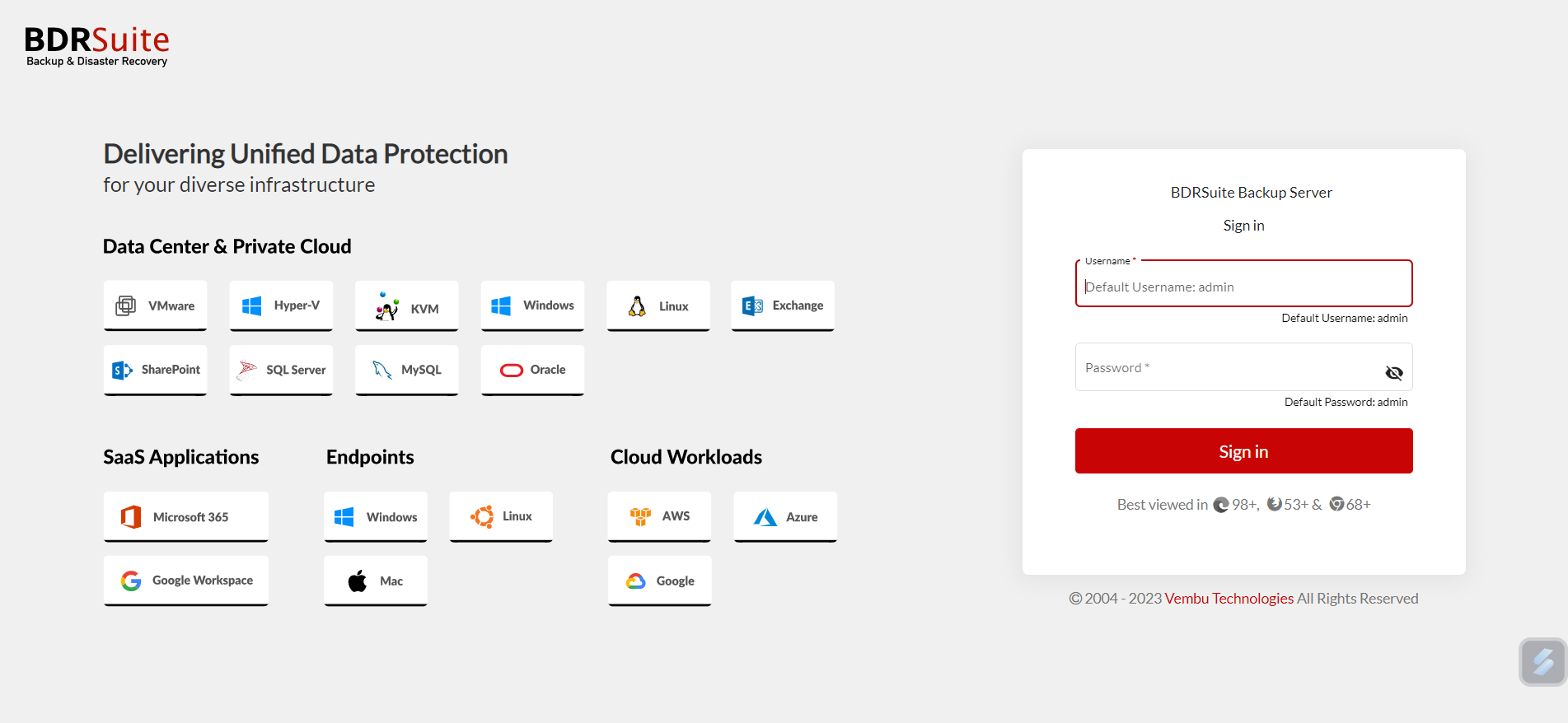

Once the installation is complete you can log in to the BDRSuite Backup Server's Web-GUI via the following options:

  • Entering the URL: https://localhost:6061 (or)
  • HTTP://<IP_Address_of_Machine>:6060.
  • View the Supported Browsers here

Unique BDRSuite ID Setup

 Enter a unique BDRSuite ID. The ID should be globally unique, as it is with this ID that each installation of the BDRSuite Backup Server will be identified.

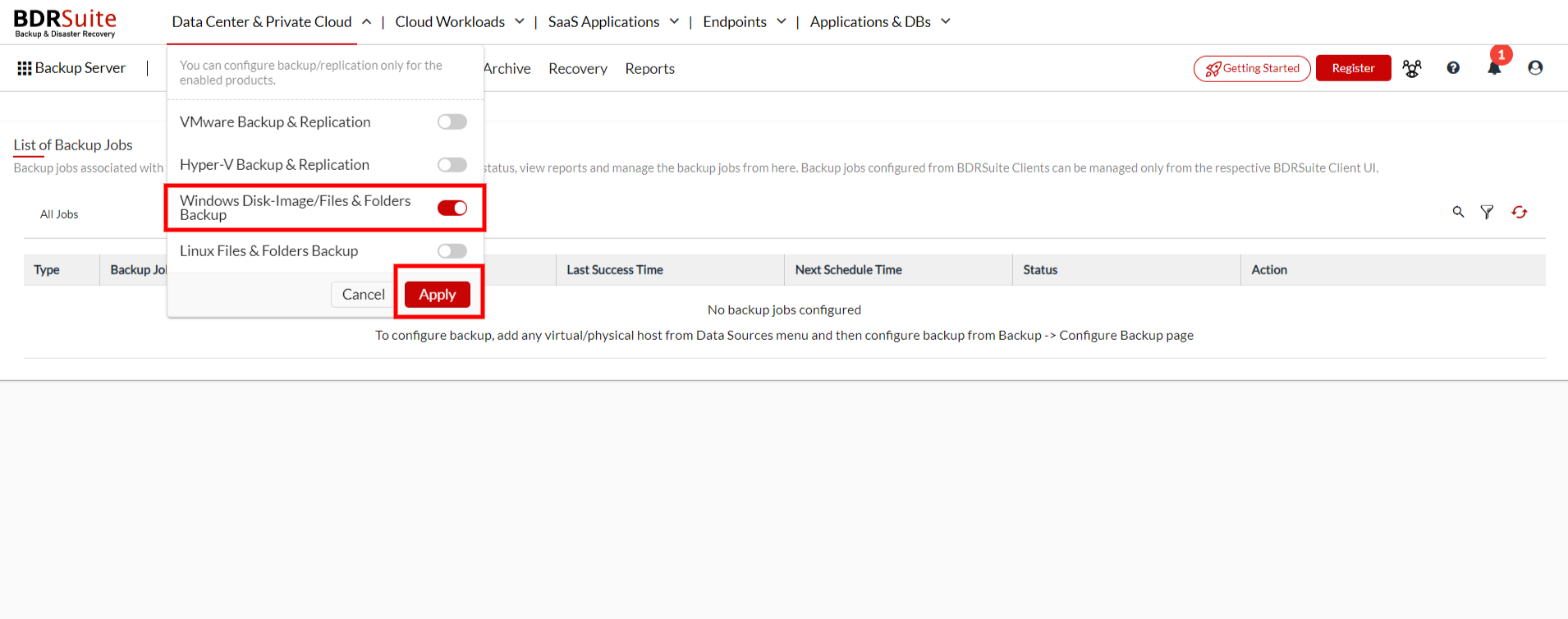

You can get started with VMware Backup by navigating to the Data Center & Private Cloud tab. Click on the drop-down menu,  enable the Windows Disk-Image/Files & Folders Backup  and click on Apply, Follow by setting up the Backup Server,  adding the required Data Sources, and then configuring the backup job.

Information Note: You can configure Backup/Replication only for the enabled products. If a particular product is disabled then the data source tab and the configuring backup job tab etc. will have no menus related to the disabled product.
