Login to Vembu Client GUI

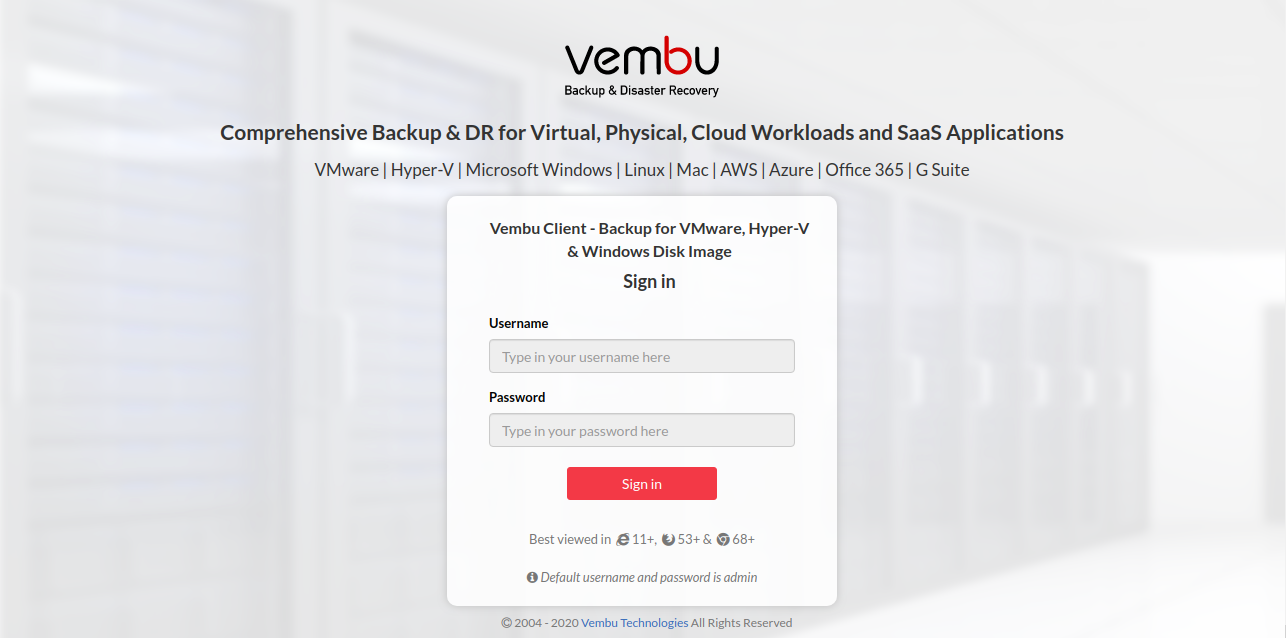

Login to ImageBackup Client Web GUI:

  1. You can log in to ImageBackup Client web UI via the following options:
    • By typing default URL: https://localhost:4545 (or) https://<Ip_Address_of_Machine>:4545 in browser
    • Via shortcut created in the desktop
    • Via ImageBackup Client option in the tray icon

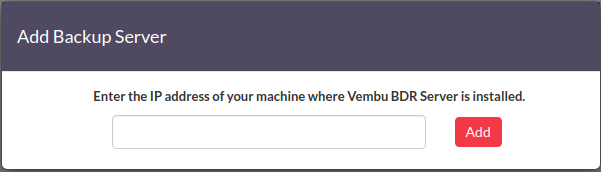

  1. The next step is to enter a unique BDR Backup Server ID. The ID should be globally unique as it is with this ID that each installation of BDR Backup Server is identified. Once done, click Add option.

InformationNote:

  • The following characters are permitted as part of the BDR Backup Server ID:
    • [ A-Z][a-z][0-9][ - _ .] Your ID must not start or end with special characters and it must be between 1-50 characters in length.
  • It is recommended to give machine name.domain name as Vembu BDR ID since it should be globally unique.

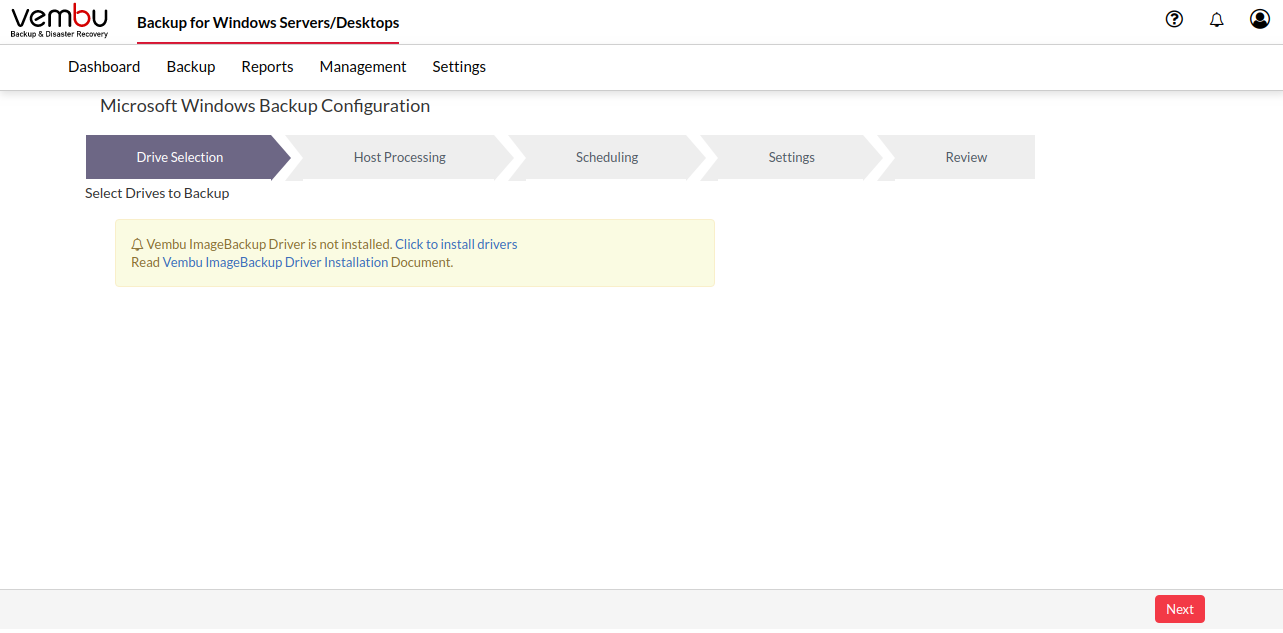

  • You will be redirected to the job listing page. If it is a fresh installation with no backup jobs configured, then the page shown below will be displayed. You must install Vembu ImageBackup Driver before you begin configuring your backup.
  • Select the Click to Install Drivers option to begin installing Vembu ImageBackup Driver. From the pop-up window, select OK, this will reboot the machine so that the driver entries will be updated.

Check Version of ImageBackup Client

  • Open the web browser and type the following URL:
    • localhost:4545/readme.html (or) IP Address:4545/readme.html
