Manage Network Drives

Through the Manage Network Drives option, you can add and delete Network Drives which will then be listed along with files/folders for backup with a separate drive letter and can be configured for backup jobs.

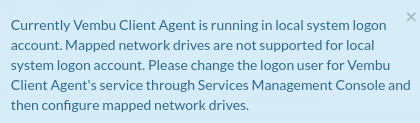

Note: Mapped Network Drives are not supported when BDRSuite Client for Files & Applications runs in a local logon account. Change logon user with administrator privileged user in the service management console and then proceed to configure Network Drive

Go to the Settings tab and select Manage Network Drives option.

Add & Manage Network Drives

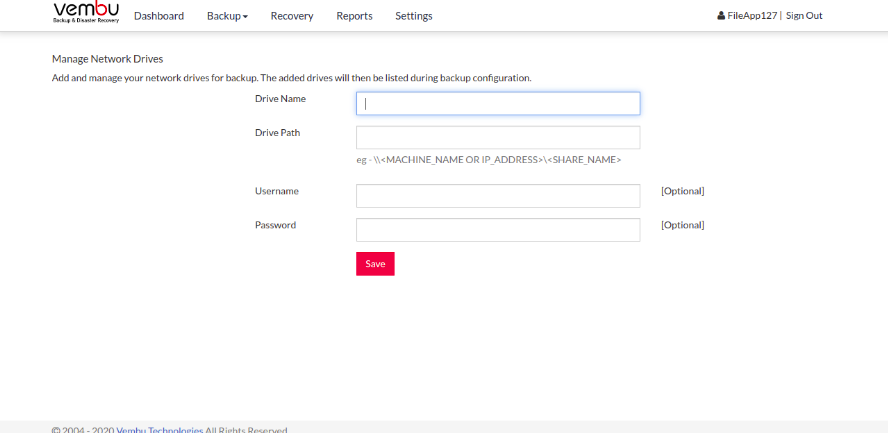

To add a Network Drive, one must provide the following attribute details:

Drive Name- Provide a drive letter/name for Network Drive to be added
Drive Path- Network path of the drive to be added

Ex: \\<MACHINE_NAME OR IP_ADDRESS>\<SHARE_NAME>

Username & Password- If Network Drive requires login authentication provide the username and password to authenticate drive addition.

You can add ‘n’ number of Network Drives and can manage it via the Manage Network Drives page.

A Network Drive added can also be deleted if not required, with a delete option alongside drives added.
