360 Server

BDRSuite 360 Server enables centralized monitoring of multiple distributed BDRSuite Servers.

Getting Started with 360 Server

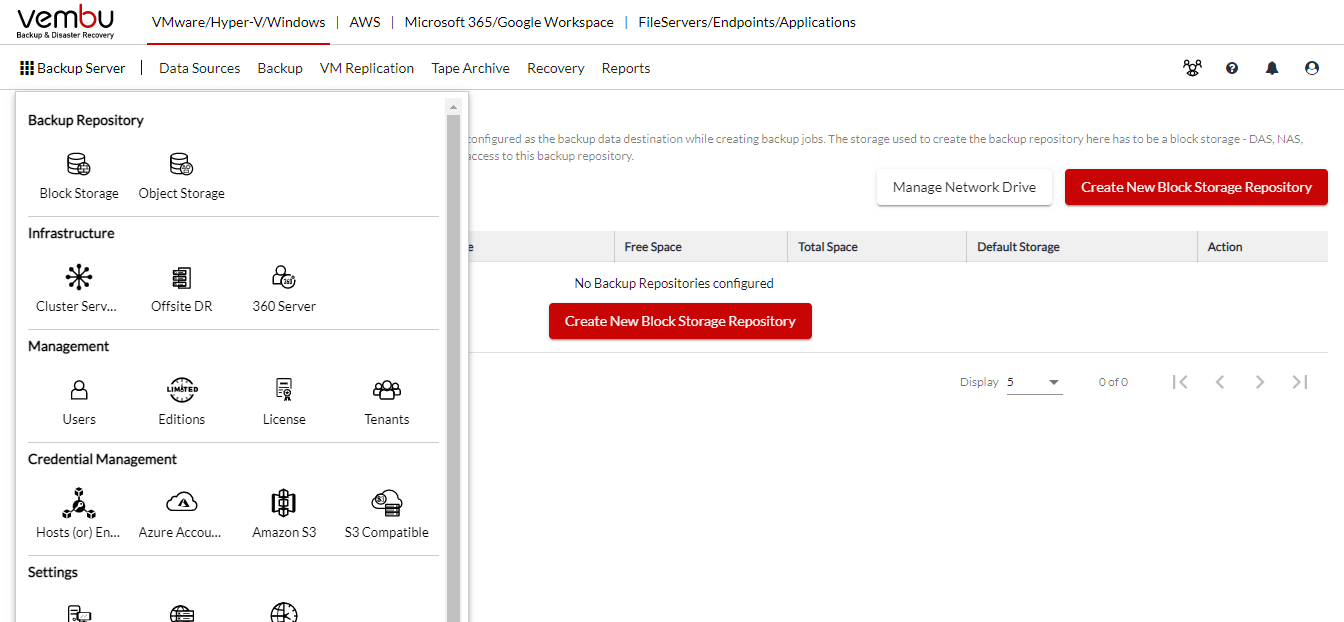

In the BDRSuite Backup Server, Navigate to Backup Server->Infrastructure->360 Server

You can download the 360 Server by clicking on the Download link. It is required to register the BDRSuite Backup Server to the Vembu Portal(Not required for trial version). Click here to know the detailed steps of registration.

Clicking on Download will take you to the 360 Server Installer page which is as follows.

Information Note:

  • The BDRSuite 360 Server installer can be download and installed in the same BDRSuite Backup Server machine as well.
  • The supported platforms are Windows 10 and above, Windows Server 2012 and above

Installation

Click here to access the guide for detailed 360 Server installation.

Activating BDR360 Server

After the installation, add the IP address of the  360 Server machine to the BDRSuite Backup Server by following the steps below.

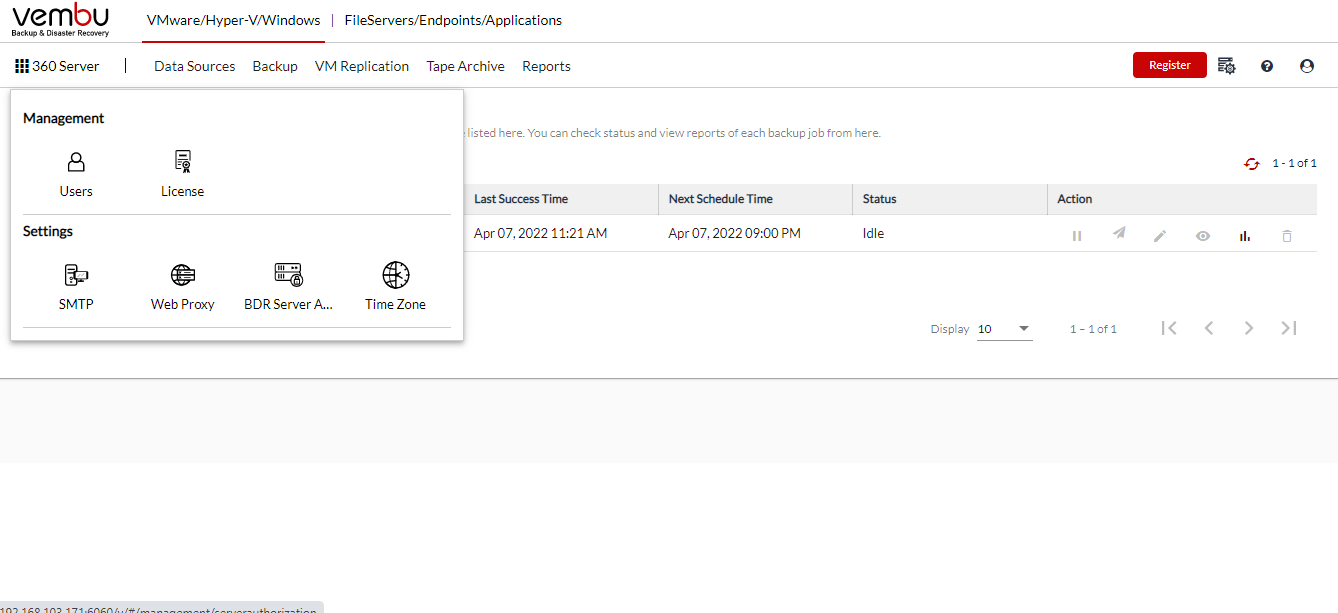

Step 1: Log in to the  BDRSuite 360 Server and navigate to 360 Server->Settings->BDR Server Authorization.

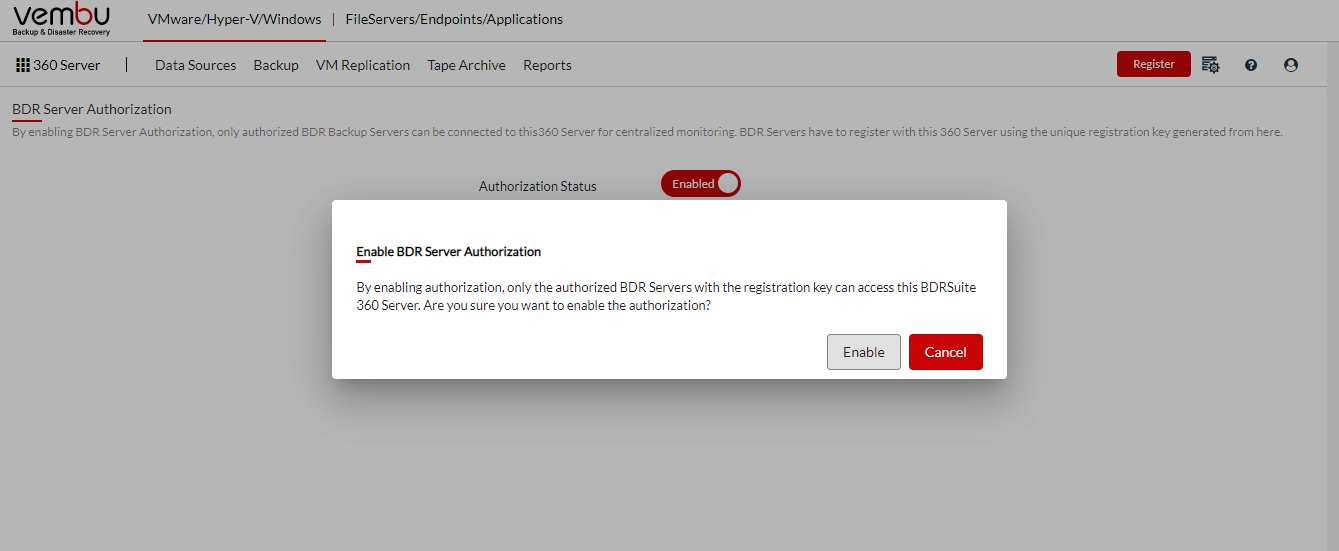

The following page will open where the Authorization Status is by default disabled. This will let any BDRSuite Backup Server to access this 360 Server without any authorization. If you like to authorize which BDRSuite Backup Server can access this 360 Server then toggle the button to Enable the Authorization Status.

Confirm and proceed to generate the Registration Key.

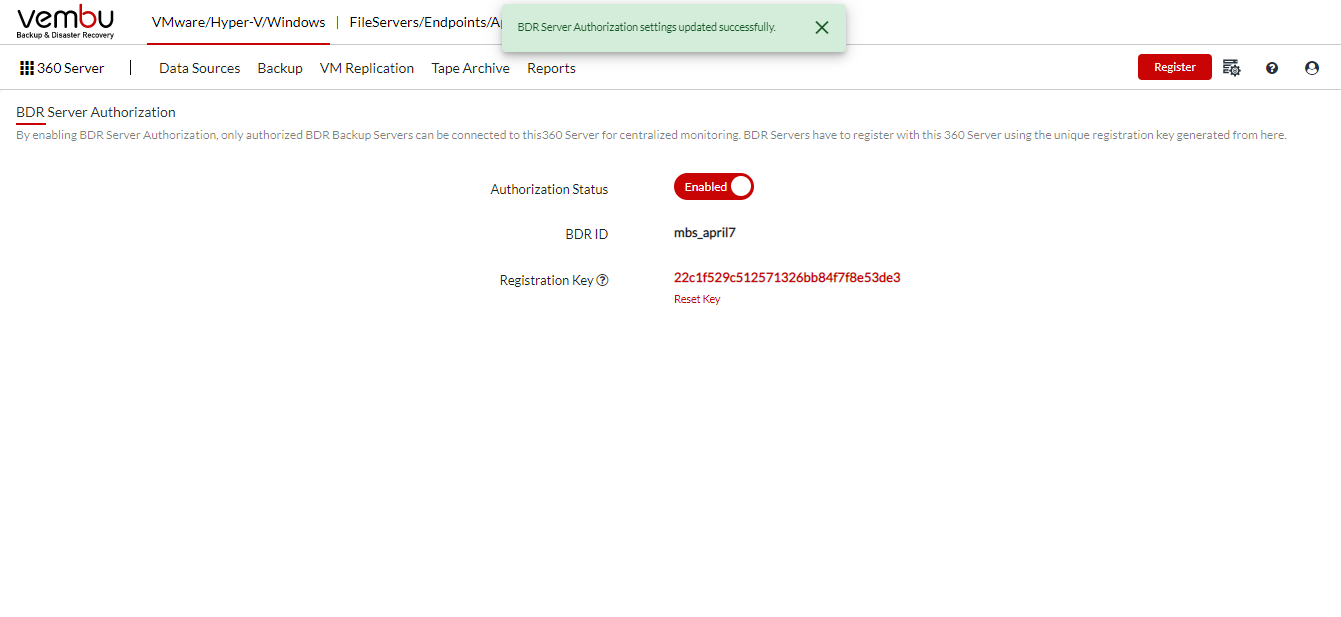

Reset Key option can  be used  when necessary. Note the Registration key as this key has to be entered  in the BDRSuite Backup Server console.

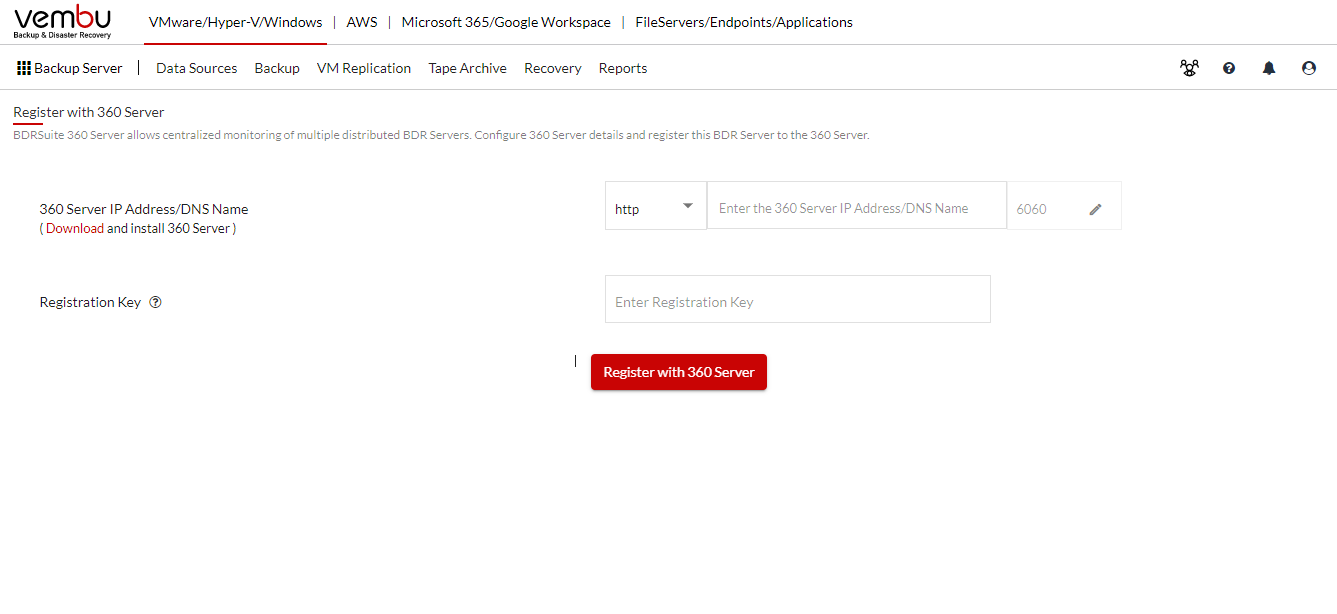

Step 2: Log in to the BDRSuite Backup Server and navigate to the  Backup Server ->Infrastructure->360 Server .

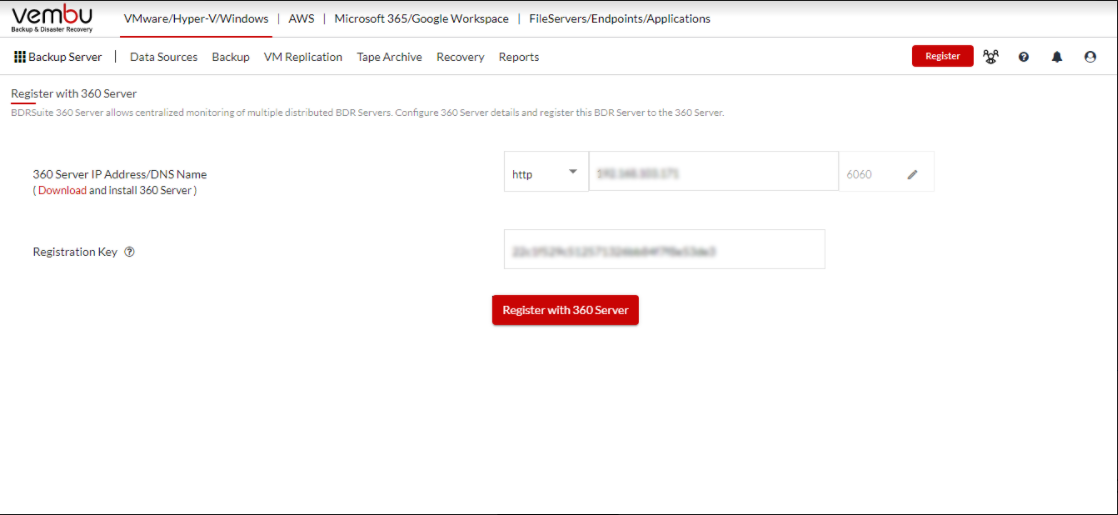

Step 3: Add the IP Address/DNS Name of the machine on which Vembu BDR360 Server is installed along with the port number.

Step 4: Enter the generated Registration key. (This step can be skipped if Authorization Status is disabled  in the 360 Server settings )

After adding these details, click on Register with 360 Server.

Log in to the 360 Server

Once after the registration, you can log in to  the 360 Server to monitor the registered BDRSuite Backup Servers.

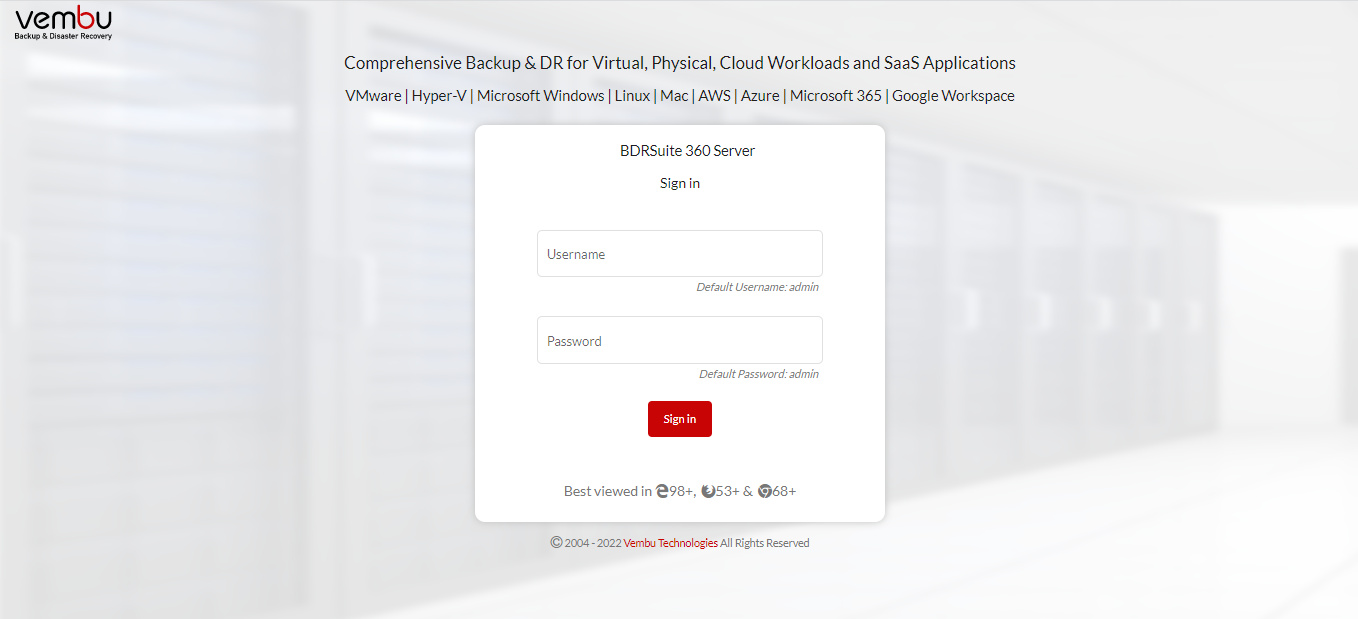

Login by entering the username and password.

Set up a BDR ID for 360 Server. It is recommended to give machine Name.domainName to keep the ID globally unique.

Once after the ID update, check the  'Getting started with BDRSuite 360 Server' quick guide.

Registering to Vembu Portal

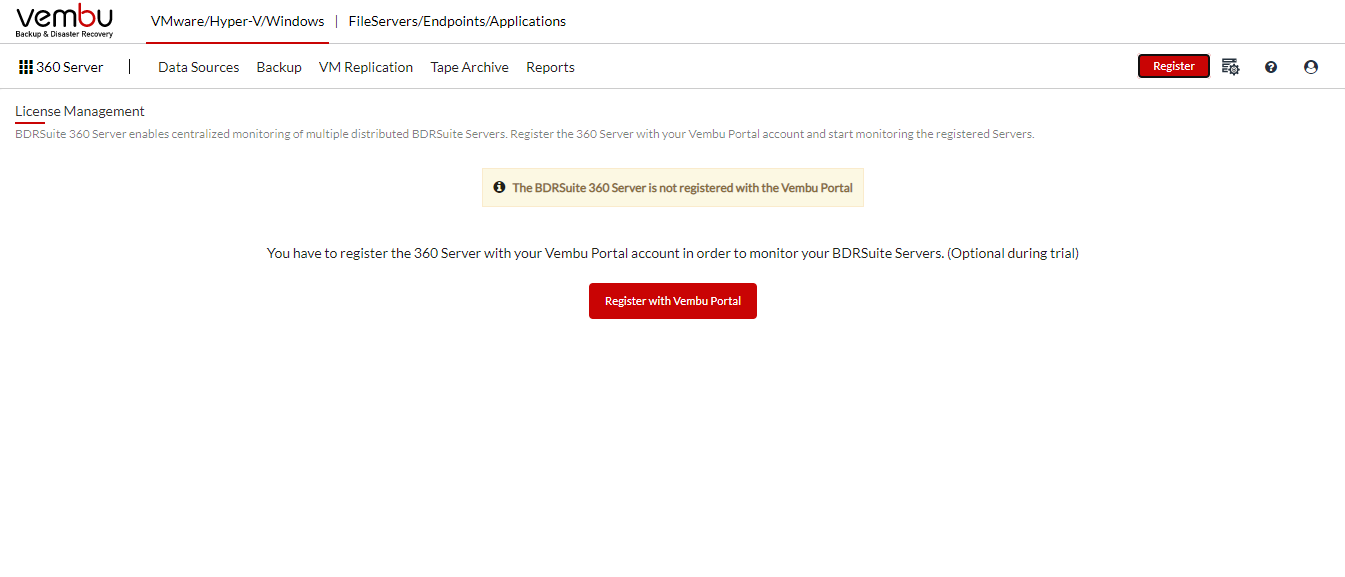

Click on the Register tab to register the 360 Server to the Vembu Portal.

Click on 'Register with Vembu Portal' , enter the required details and click Register.

Click here  to access the complete guide to use the 360 Server.
